With 11 years of deep cultivation, creating industrial grade anti-static QR code access control for overseas integrators. Adopting multi-layer circuit protection and IEC limit testing (contact ± 8kV/air ± 15kV) to ensure zero crashes in complex environments. Helping you easily pass international certification and significantly reducing after-sales maintenance costs, it is a reliable hardware base for your software platform.
Table of contents:
Main text:
The overseas access control projects we have cooperated with usually install
QR code access control equipment in university laboratories, Grade A office buildings, data centers, shared gyms and other application places. Whether it is touching with hands, swiping access cards, touching metal casings, or operating equipment in dry air environments, electrostatic discharge (ESD) is one of the important reason of equipment instability, crashes, restarts, and even hardware damage.
As a leading manufacturer in the field of
QR code access control for 11 years, we deeply understand that for system integrators and platform developers, the stability of hardware directly determines the success rate and after-sales service rate of your project. Therefore, from the beginning of the circuit design, our QR code access control has made electrostatic protection the main design goal.
I、 Why the professional electrostatic protection for QR code access control is so important to you?
As an integrator or platform provider with development capabilities, what are your concerns:
1. On site stability: reduce after-sales response and customer complaints caused by hardware failures in QR code access control;

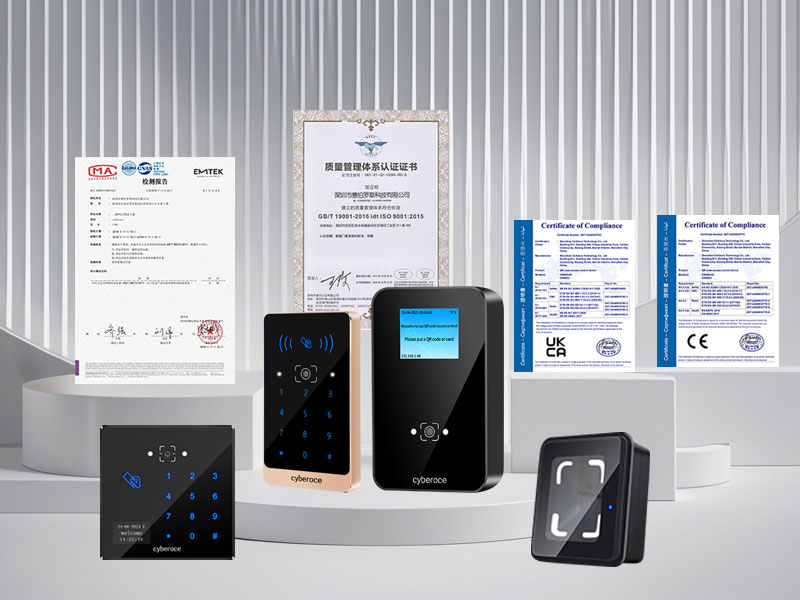

2. Certification efficiency: By using our ODM products, we can help you quickly pass EMC/ESD tests in international certifications such as CE, FCC, KC, etc;
3. Development convenience: Only focus on the development of the software platform system, without worrying about hardware stability, and there is no need to add additional protective circuits during construction;
4. Easy after-sales service: Stable QR code access control equipment greatly reduces your company's after-sales maintenance costs.
We are not stacking components, but taking effective measures targeted at different signal characteristics to ensure the stability of the QR code access control hardware. To this end, we have built a multi-layer three-dimensional protection system in the hardware.

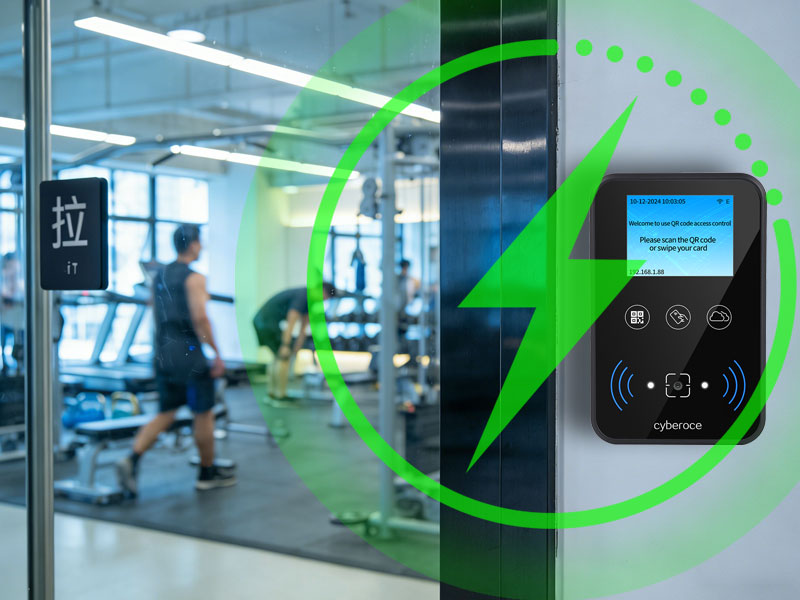

II、 QR code access control adopts multi-layer electrostatic protection
1. Critical link protection: TVS diodes are configured at all power input terminals (such as 12V), with nanosecond response. When an electrostatic shock occurs, they instantly clamp the voltage and block system restarts caused by power fluctuations;
2. High speed communication protection: Low capacitance polymer ESD suppressors are used for high-speed signal lines such as Wi Fi and RS485, releasing electrostatic charges without interfering with signal integrity
3. Physical isolation: All exposed interfaces (exit buttons, door magnets) are equipped with dedicated ESD protection devices to block electrostatic coupling paths, physically cutting off the path of static electricity entering the CPU and preventing abnormal restarts.
The benefits of doing so are: reducing device black screens, crashes, and communication interruptions caused by static electricity, achieving stable reception of commands sent by backend software for QR code access control, and avoiding the fault of "remote door opening failure" caused by static electricity.
4. Filter design: A combination of resistors, magnetic beads, and ground capacitors is used on the key signal line to form a low-pass filter and delay the rising edge of ESD;
The benefits of doing so are：that even if the QR code access control encounters static electricity, the device can still work normally, and it has strong compatibility with external devices such as exit buttons.
5. Grounding and PCB partition design:
A、 Divide the PCB into exposed port areas (connectors, shell interfaces) and core control areas (MCU, memory);
B、 The Chassis GND and Digital GND are connected at a single point through a high-voltage capacitor (1nf/2kV), which not only establishes a discharge channel for high-frequency static electricity, but also prevents ground loop interference caused by the grounding loop, enhancing the system signal-to-noise ratio.
The benefits of doing so are: reducing static electricity failures caused by different installation methods, even in complex electromagnetic environments such as industrial sites and data centers, QR code access control devices can still work normally.
III、QR code access control passes the limit test
We are well aware of the complexity of overseas access control installation environments, so our equipment's factory standards are much higher than the industry average:
International standard benchmarking: Fully compliant with the IEC 61000-4-2 international standard (corresponding to the national standard GB/T 17626.2), it is convenient for you to purchase our OEM QR code access control products and pass CE/FCC certification smoothly.
Extreme tolerance: The commonly used industry standard is ± 4kV/air ± 8kV for contact, but we have raised the standard to ± 8kV/air ± 15kV for contact.
After each round of testing fails, we use Failure Analysis (FA) to identify weak points and re optimize the circuit and layout until the product can still function normally under extreme conditions.
The advantage of doing this is that we have achieved a static protection of ± 8kV/± 15kV, not for the sake of good parameters, but to enable overseas integrators to have less cross-border logistics, less complaints, and more customer trust when undertaking projects.
Choosing our QR code access control is not only choosing access hardware, but also choosing a reliable long-term partner that has undergone rigorous environmental verification. We have formed a complete system from component selection, isolation design, grounding strategy to extreme testing, allowing overseas system integrators and software platform vendors with development capabilities to confidently deploy QR code access control installation to more application scenarios around the world.
