PWB03H Ticketing access controller 7inch Screen Access Controller Scene Display Turnstile Control Board

Name: PWB03H Ticketing access controller 7inch Screen Access Controller Scene Display Turnstile Control Board
Brand: Original QR Code Access Control Supplier
SKU: Ticketing access controller PWB03H
Availability: InStock
Rating: 5 (1 reviews)

No.Ticketing access controller PWB03H

QR code ticketing accee controller specially designed for tourist attraction, It has rich expansion interfaces: RS232/Wiegand/USB/Relay, can support http/https/MQTT protocol. With Linux can directly with any third-party systems.Adopting a wide voltage design ,built in 6000V lightning protection function.

Get The Latest Quote

Original QR Code Access Control Supplier

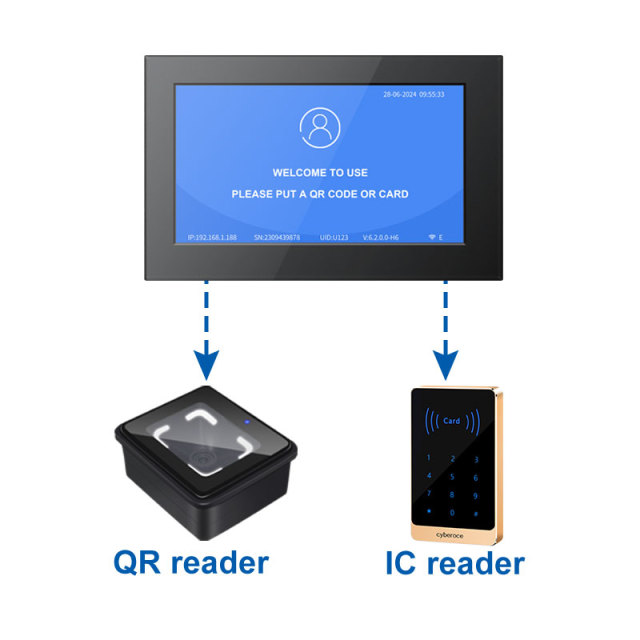

Multiple interfaces to connect input devices, such as QR reader,IC reader. RS232 x2, RS485 x1, Wiegand x1

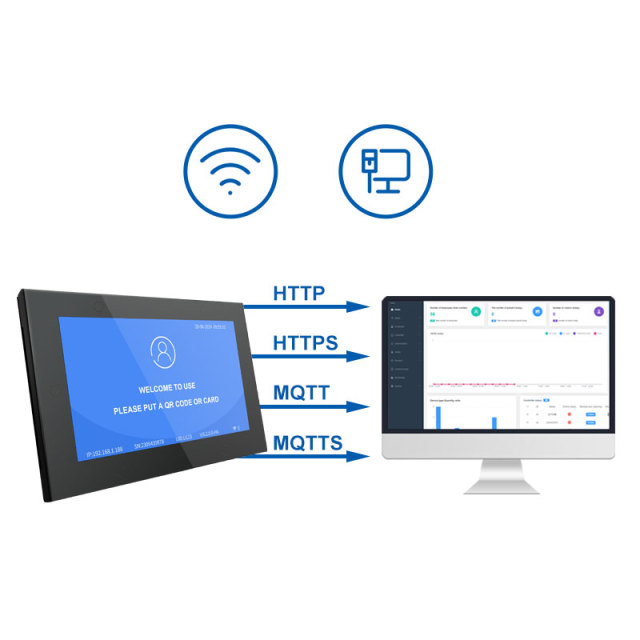

Provide SDK, support secondary development, connect to third softwaresystems via HTTP/MQTT.Customized services for customers.

Description

Qr code access control Product Parameters

Model	PWB03H
Identification Method	QR code / RFID card
Communication Protocol	http/https/MQTT
Internet connection method	Ethernet WiFi(optional)
Output Method	Relay/Protocol opening
Extended Interface	2RS232 1Wiegand 1USB 2Relay
White list capacity	100000

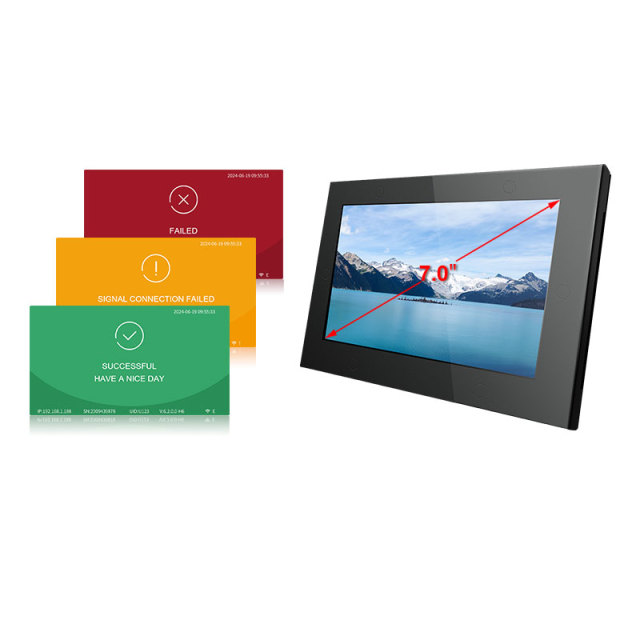

Screen Display	7 inch 1024*600
Audio Amp	4Ω10W
Input Voltage	9-24V
Material	ABS+Tempered glass
Size	181*100 mm
Weight	680g
